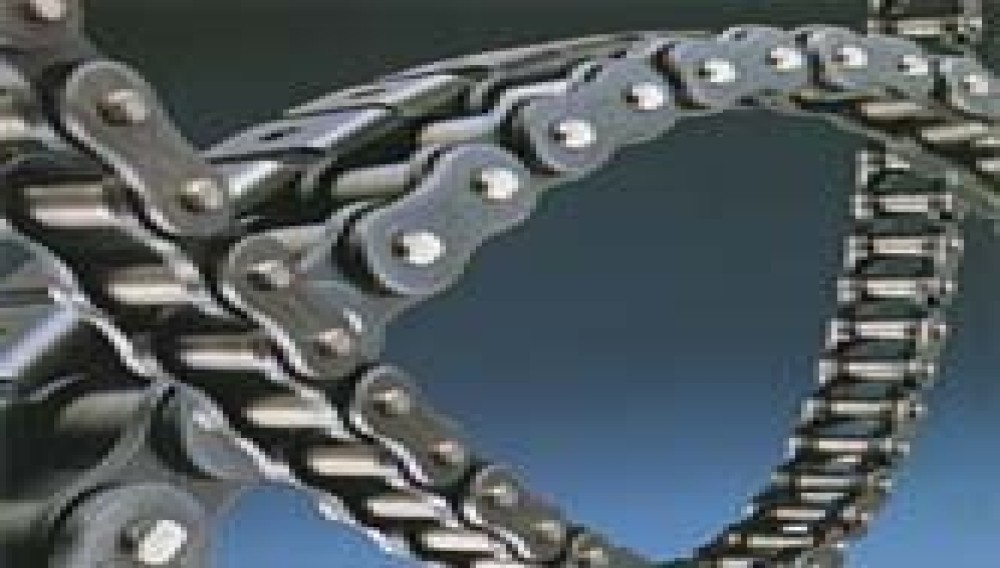

The definitive lubrication free chain
Ultra long life
The inclusion of a felt seal in the construction of X-Λ has increased the
anti-wear performance to more than 5 times that of Standard
Lambda Chain. (In-company comparison) (-10°C~+60°C)
Cost reduction
Maintenance costs down + work ratio up = Overall cost reduction
Reduced maintenance
Reductions in lubrication, chain take-up, and machine positioning adjustments.
Increased productivity
Decrease in faulty product ration, reduction in chain replacement.
| |
Dimensions-mm
|
Chain No.
|
Pitch P
|
Roller Dia. R
|
Width between Roller Link Plates W
|
|
RSD40X-Λ
|
12.70
|
7.95
|
7.55
|
|
RSD50X-Λ
|
15.875
|
10.16
|
9.26
|
|
RSD60X-Λ
|
19.05
|
11.91
|
12.28
|
|
RSD80X-Λ
|
25.40
|
15.88
|
15.48
|
|
RSD100X-Λ
|
31.75
|
19.05
|
18.70
|
|
|
|
Dimensions-mm
|
Chain No.
|
Link Plate
|
Pin
|
|
Thickness
T1
|
Thickness
T2
|
Height
H
|
Height
h
|
Dia.
D
|
From Pin Head to C.L.
L1
|
From Pin end to C.L.
L2
|
|
RSD40X-Λ
|
1.5
|
2.0
|
12.0
|
10.4
|
3.97
|
9.4
|
11.1
|
|
RSD50X-Λ
|
2.0
|
2.4
|
1.50
|
13.0
|
5.09
|
11.4
|
13.1
|
|
RSD60X-Λ
|
2.4
|
3.2
|
18.1
|
15.6
|
5.96
|
14.55
|
16.55
|
|
RSD80X-Λ
|
3.2
|
4.0
|
24.1
|
20.8
|
7.94
|
18.3
|
20.9
|
|
RSD100X-Λ
|
4.0
|
4.8
|
30.1
|
26.0
|
9.54
|
21.8
|
24.5
|
|
|
|
Dimensions-mm
|
Chain No.
|
Average Tensile Strength kN {kgf}
|
Maximum Allowable Load kN {kgf}
|
Approx. Mass
kg/m
|
Number of Links per unit
|
Allowable Speed
m/min
|
|
RSD40X-Λ
|
19.1 {1,950}
|
3.63 {370}
|
0.70
|
240
|
150
|
|
RSD50X-Λ
|
31.4 {3,200}
|
6.37 {650}
|
1.11
|
192
|
135
|
|
RSD60X-Λ
|
44.1 {4,500}
|
8.83 {900}
|
1.72
|
160
|
120
|
|
RSD80X-Λ
|
78.5 {8,000}
|
14.7 {1,500}
|
2.77
|
120
|
90
|
|
RSD100X-Λ
|
118.0 {12,000}
|
22.6 {2,300}
|
4.30
|
96
|
80
|
|
| |
- Operating temperature: -10ºC ~ +150ºC
- Sprocket: Standard RS Roller Chain sprocket can be used as is
(Only for Single Strand Roller Chain)
Also, due to the insertion of the Felt Seal the pin is now
longer (L1, L2). Please check for any interference.
|
|
