Sizes available from Bore : RNAO

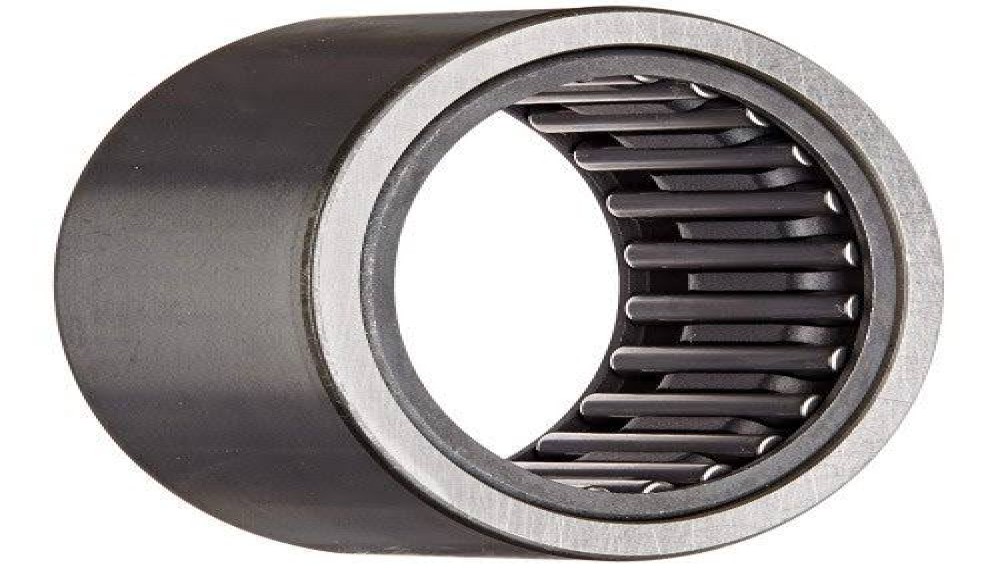

The RNAO Series consists of machined needle roller bearings without an inner ring and without ribs (flanges). These bearings are designed for applications where the shaft serves as the raceway and axial guidance is provided by adjacent machine components.
| Bearing No. | Fw (mm) | D (mm) | C (mm) | Approx. Weight (kg) |
|---|---|---|---|---|
| RNAO15×23×13 | 15 | 23 | 13 | 0.018 |
| RNAO17×25×13 | 17 | 25 | 13 | 0.021 |
| RNAO20×28×16 | 20 | 28 | 16 | 0.028 |
| RNAO22×30×16 | 22 | 30 | 16 | 0.031 |
| RNAO25×35×20 | 25 | 35 | 20 | 0.050 |
| RNAO30×40×20 | 30 | 40 | 20 | 0.060 |
| RNAO35×45×20 | 35 | 45 | 20 | 0.072 |
| RNAO40×50×22 | 40 | 50 | 22 | 0.092 |
| RNAO45×55×22 | 45 | 55 | 22 | 0.105 |
| RNAO50×62×25 | 50 | 62 | 25 | 0.155 |
| RNAO55×68×25 | 55 | 68 | 25 | 0.180 |
| RNAO60×72×25 | 60 | 72 | 25 | 0.195 |
| RNAO65×80×30 | 65 | 80 | 30 | 0.290 |
| RNAO70×85×30 | 70 | 85 | 30 | 0.320 |
| RNAO75×90×30 | 75 | 90 | 30 | 0.350 |
| RNAO80×95×30 | 80 | 95 | 30 | 0.380 |
| RNAO90×105×30 | 90 | 105 | 30 | 0.470 |
| RNAO100×120×35 | 100 | 120 | 35 | 0.650 |
