RNA 4900-2RS SERIES

Sizes available from Bore : RNA 4900-2RS TO RNA 4916-2RS

Description

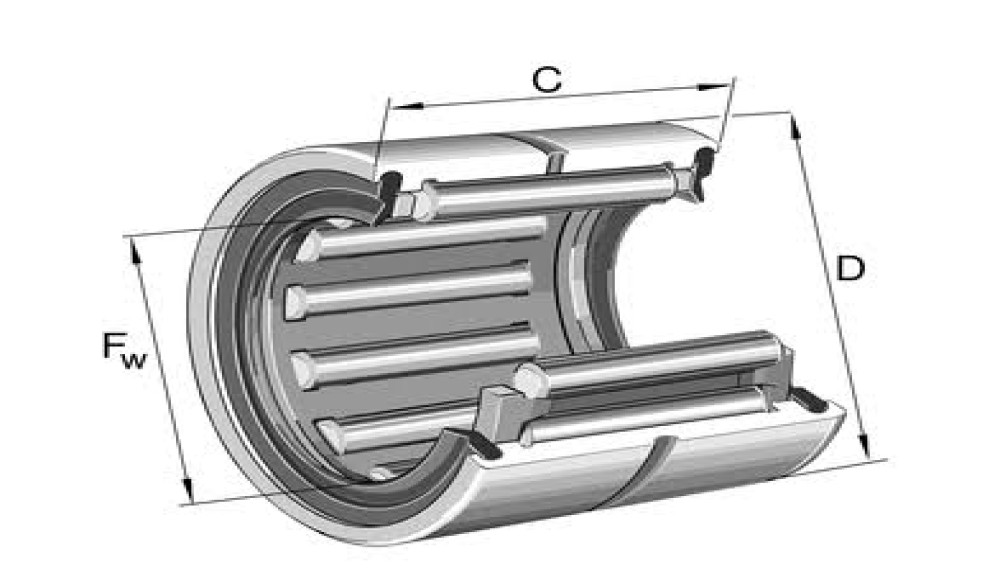

RNA 4900-2RS Series Needle Roller Bearing Dimension Chart (Without Inner Ring)

The RNA 4900-2RS Series consists of machined needle roller bearings without an inner ring, equipped with contact rubber seals on both sides (2RS) and pre-lubricated with grease. These bearings are designed for applications where the shaft is hardened and ground to serve as the raceway.

Bearing No.	Fw (mm)	D (mm)	C (mm)	Seal	Weight (kg)
RNA4900-2RS	14	22	13	2RS	0.016
RNA4901-2RS	16	24	13	2RS	0.019
RNA4902-2RS	20	28	13	2RS	0.026
RNA4903-2RS	22	30	13	2RS	0.030
RNA4904-2RS	25	37	17	2RS	0.060
RNA49/22-2RS	28	39	17	2RS	0.068
RNA4905-2RS	30	42	17	2RS	0.074
RNA4906-2RS	35	47	17	2RS	0.088
RNA4907-2RS	42	55	20	2RS	0.145
RNA4908-2RS	48	62	22	2RS	0.205
RNA4909-2RS	52	68	22	2RS	0.245
RNA4910-2RS	58	72	22	2RS	0.260
RNA4911-2RS	63	80	25	2RS	0.390
RNA4912-2RS	68	85	25	2RS	0.430
RNA4913-2RS	72	90	25	2RS	0.460
RNA4914-2RS	80	100	30	2RS	0.680
RNA4915-2RS	85	105	30	2RS	0.730
RNA4916-2RS	90	110	30	2RS	0.780
