Sizes available from Bore : NKX 10 TO NKX 60

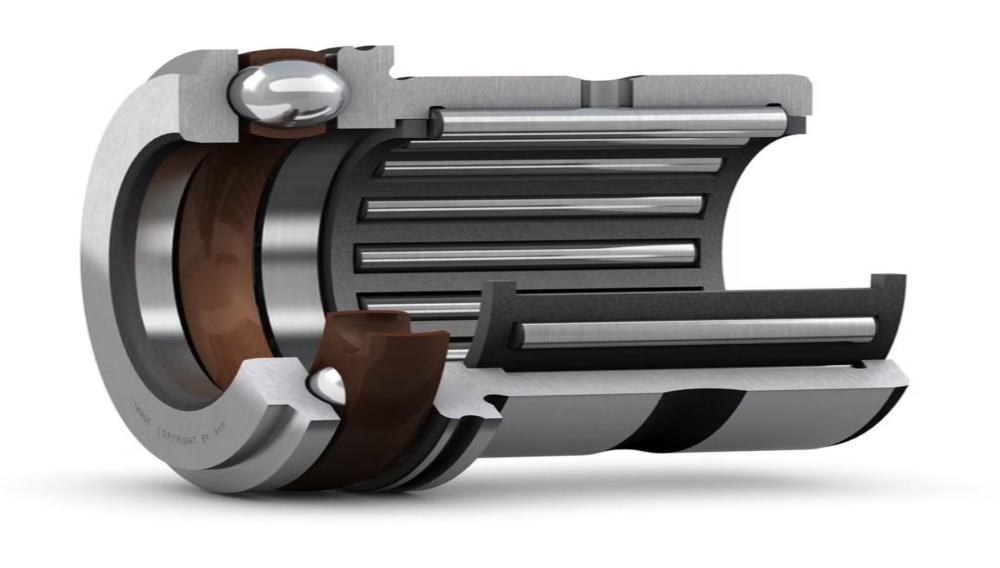

The NKX Series consists of a radial needle roller bearing combined with a single-direction thrust ball bearing. These bearings are designed to support high radial loads together with axial loads in one direction while maintaining a compact cross-section. The standard NKX series is intended for oil lubrication, whereas the NKX..-Z series incorporates a steel end cover for grease lubrication. Boundary dimensions conform to DIN 5429-1.
| Bearing No. | Bore Fw (mm) | Outside Dia. D (mm) | Flange Dia. D1 (mm) | Width C (mm) | Thrust Width C1 (mm) | Ball Section C2 (mm) | Weight (g) |
|---|---|---|---|---|---|---|---|
| NKX 10 | 10 | 19 | 24 | 23 | 9 | 6.5 | 55 |
| NKX 12 | 12 | 21 | 26 | 23 | 9 | 6.5 | 70 |
| NKX 15 | 15 | 24 | 28 | 23 | 9 | 6.5 | 95 |
| NKX 17 | 17 | 26 | 30 | 25 | 9 | 7.0 | 120 |
| NKX 20 | 20 | 30 | 35 | 30 | 10 | 10.5 | 180 |
| NKX 25 | 25 | 37 | 42 | 30 | 11 | 9.5 | 260 |
| NKX 30 | 30 | 42 | 47 | 30 | 11 | 10.0 | 320 |
| NKX 35 | 35 | 47 | 52 | 30 | 12 | 10.0 | 410 |
| NKX 40 | 40 | 52 | 60 | 32 | 13 | 11.0 | 520 |
| NKX 45 | 45 | 58 | 65 | 32 | 14 | 11.5 | 650 |
| NKX 50 | 50 | 62 | 70 | 35 | 14 | 12.0 | 820 |
| NKX 60 | 60 | 72 | 85 | 40 | 17 | 12.0 | 1180 |
