NK Series

Description

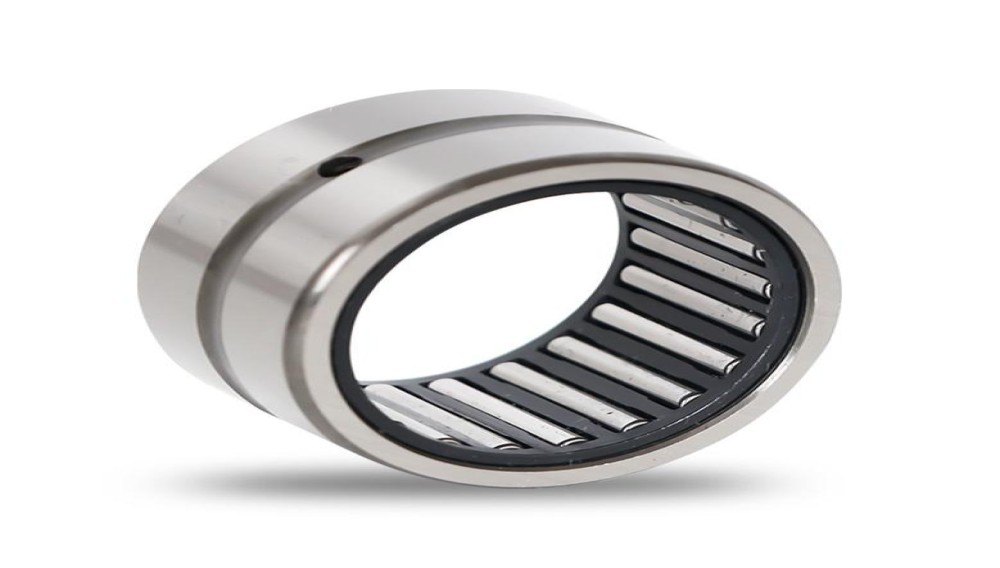

NK Series Machined Needle Roller Bearings are precision-engineered radial bearings with a machined steel outer ring, needle roller and cage assembly, and no inner ring. They are designed for applications where the shaft itself acts as the raceway and has been hardened and precision-ground. Their compact design provides high load capacity while minimizing installation space.

Features

Machined, high-strength steel outer ring
High radial load-carrying capacity
Compact design with low radial cross-section
Suitable for high-speed applications
Low friction and smooth operation
High rigidity and long service life
Available in open designs with lubrication grooves/holes on larger sizes
Requires a hardened and ground shaft because the bearing is supplied without an inner ring.

Designation	d	D	B
NK 5/10	5	10	10
NK 5/12	5	10	12
NK 6/10	6	12	10
NK 6/12	6	12	12
NK 7/10	7	14	10
NK 7/12	7	14	12
NK 8/12	8	15	12
NK 8/16	8	15	16
NK 9/12	9	16	12
NK 9/16	9	16	16
NK 10/12	10	17	12
NK 10/16	10	17	16
NK 12/12	12	19	12
NK 12/16	12	19	16
NK 14/16	14	22	16
NK 14/20	14	22	20
NK 15/16	15	23	16
NK 15/20	15	23	20
NK 16/16	16	24	16
NK 16/20	16	24	20
NK 17/16	17	25	16
NK 17/20	17	25	20
NK 18/16	18	26	16
NK 18/20	18	26	20
NK 19/16	19	27	16
NK 19/20	19	27	20
NK 20/16	20	28	16
NK 20/20	20	28	20
NK 22/16	22	30	16
NK 22/20	22	30	20
NK 25/16	25	33	16
NK 25/20	25	33	20
NK 25/22	25	33	22
NK 25/30	25	33	30
NK 28/20	28	37	20
NK 28/30	28	37	30
NK 30/20	30	40	20
NK 30/25	30	40	25
NK 30/30	30	40	30
NK 32/20	32	42	20
NK 32/30	32	42	30
NK 35/20	35	45	20
NK 35/25	35	45	25
NK 35/30	35	45	30
NK 38/20	38	48	20
NK 38/25	38	48	25
NK 38/30	38	48	30
NK 40/20	40	50	20
NK 40/25	40	50	25
NK 40/30	40	50	30
NK 42/20	42	52	20
NK 42/25	42	52	25
NK 42/30	42	52	30
NK 45/20	45	55	20
NK 45/25	45	55	25
NK 45/30	45	55	30
NK 48/20	48	58	20
NK 48/25	48	58	25
NK 48/30	48	58	30
NK 50/20	50	62	20
NK 50/25	50	62	25
NK 50/30	50	62	30
NK 50/35	50	62	35
NK 55/20	55	68	20
NK 55/25	55	68	25
NK 55/30	55	68	30
NK 55/35	55	68	35
NK 60/25	60	72	25
NK 60/30	60	72	30
NK 60/35	60	72	35
NK 65/25	65	80	25
NK 65/30	65	80	30
NK 65/35	65	80	35
NK 70/25	70	85	25
NK 70/30	70	85	30
NK 70/35	70	85	35
NK 75/25	75	90	25
NK 75/30	75	90	30
NK 75/35	75	90	35
NK 80/25	80	95	25
NK 80/30	80	95	30
NK 80/35	80	95	35
NK 85/25	85	105	25
NK 85/30	85	105	30
NK 90/25	90	110	25
NK 90/30	90	110	30
NK 100/26	100	120	26
NK 100/36	100	120	36
NK 105/26	105	125	26
NK 105/36	105	125	36
NK 110/30	110	130	30
NK 110/40	110	130	40
