NA 6900-2RS SERIES

Sizes available from Bore : NA 6900-2RS TO NA 6916-2RS

Description

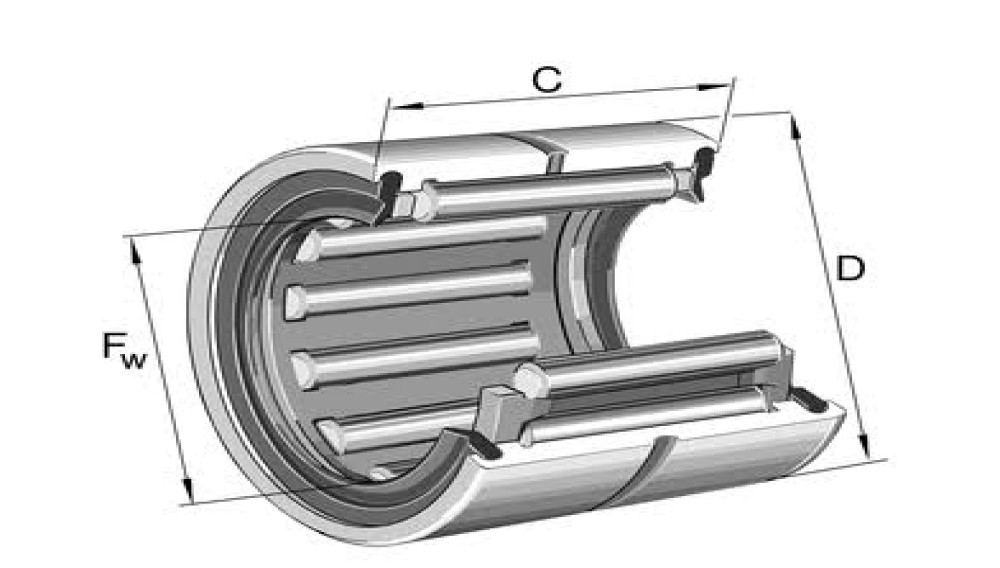

RNA 6900-2RS Series Needle Roller Bearing Dimension Chart (Without Inner Ring)

The RNA 6900-2RS Series consists of machined needle roller bearings without an inner ring, fitted with double rubber seals (2RS) and factory-filled grease. These bearings are intended for use on hardened and ground shafts that act as the raceway.

Bearing No.	Fw (mm)	D (mm)	C (mm)	Seal	Approx. Weight (kg)
RNA6900-2RS	10	22	20	2RS	0.035
RNA6901-2RS	12	24	22	2RS	0.040
RNA6902-2RS	15	28	23	2RS	0.055
RNA6903-2RS	17	30	23	2RS	0.060
RNA6904-2RS	20	37	30	2RS	0.105
RNA6905-2RS	25	42	30	2RS	0.125
RNA6906-2RS	30	47	30	2RS	0.145
RNA6907-2RS	35	55	36	2RS	0.215
RNA6908-2RS	40	62	40	2RS	0.310
RNA6909-2RS	45	68	40	2RS	0.360
RNA6910-2RS	50	72	40	2RS	0.395
RNA6911-2RS	55	80	45	2RS	0.560
RNA6912-2RS	60	85	45	2RS	0.620
RNA6913-2RS	65	90	45	2RS	0.680
RNA6914-2RS	70	100	54	2RS	0.980
RNA6915-2RS	75	105	54	2RS	1.050
RNA6916-2RS	80	110	54	2RS	1.120
